Mazda MX5 Seat Conversion

 It has become increasingly popular to install early Maxda MX5 seats in British Classic Cars. Mazda MX5 seats can be a great addition to the TR4A, TR5 & TR6, they offer a compact and stylish design with modern levels of comfort and ease of adjustment. The seats interface perfectly with the original vehicle seat belt anchor points. We place great emphasis on NOT utilising the Mazda mounted belt buckle as classic car structures are not engineered to take crash loading generated by a restraint to the seat, therefore the original vehicle setbelt anchor points must be used.

MX5 Seat Conversion Bracket Set Standard or Tall Driver - Late TR4/4A/5/250/TR6                                        £83.00 inc vat

MX5 Seat Conversion Bracket Set Standard or Tall Driver -  Early TR4                                                             £83.00 inc vat

(Floor pan work required - please call for more information)

Fitting service (labour only) available for Late TR4/4A/5/250/TR6                                                                       £75.00 plus vat

Mazda cover cap set to hide nut & stud (8 pieces)                                                                                                   £42.00 inc vat

Our standard bracket set is a bolt in installation utilising the original seat runner anchor nuts in the floor pan.

Our brackets will fit MK1 and MK2 seats from MX5 and Miata.

MK1  seats have integral headrest.

MK2 seats have sliding headrests and also require some metal work to the seat runners by means of a hack saw or grinder.

You will require a complete Mazda seat runner set, make sure these runners are attached to the appropriate seat as the installation is asymetric.

Supplied in bare steel finish.

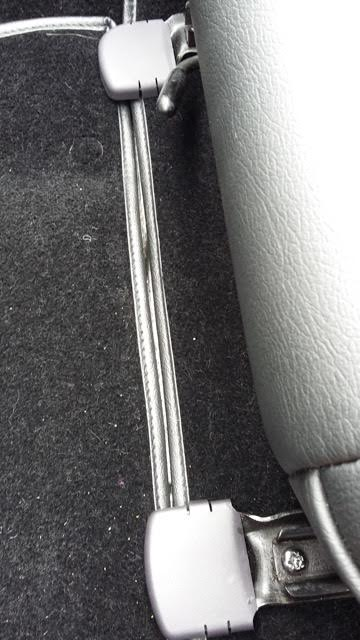

   NB: We now stock a set of genuine Mazda cover caps to hide the nut and stud giving the installation a neat factory look - 8 pieces in total - Price £42 inc vat



 **We have a good selection of Mazda Seats in stock - for more details click here: MAZDA SEATS





MKI seat with integral headrest                           MKII seats fitted in a TR4A                       Recovered seats ready to go into a TR5              MK11 seats fitted for customer into a TR4A

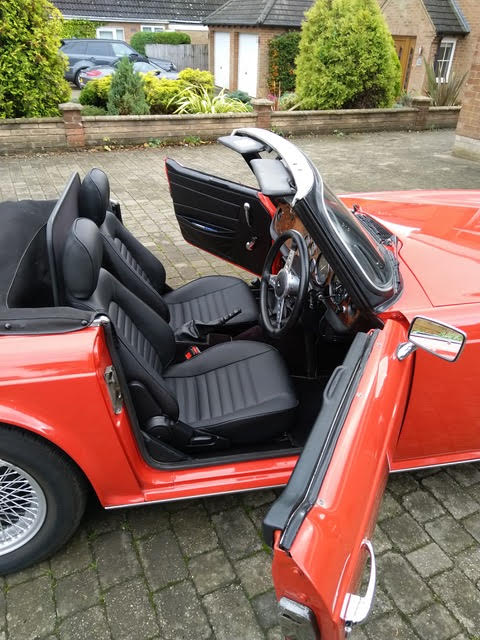

MX5 MK2 seats in black leather piped with green, going into                  Thanks for this photo of MX5 MK2 seats                        Thanks Phil for this great photo of your TR6
a British Racing Green TR6, using TR Trader adapter brackets                fitted in a TR6 using TR Trader adapter brackets               using our seat conversion package







 Correct layout of the Mazda runners, the tilt lever goes                            MX5 seat buckets benefit from a coat of paint!                             Mazda MK2 Approximate Dimensions

outboard and the fore aft adjustment lever goes inboard





IMPORTANT: The seat belt anchor on the seat must be deleted, simply remove with a 17mm spanner. only the original Triumph seat belt anchor points must be used.

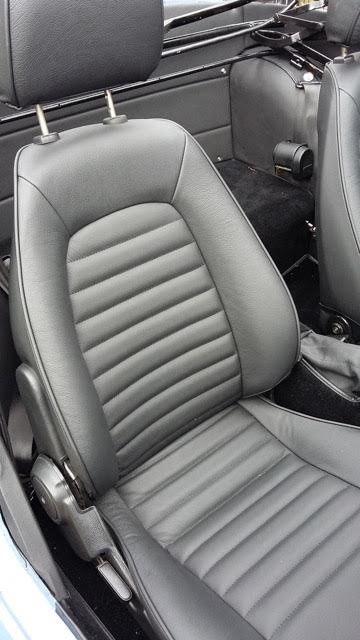

 MK1 seats with integral headrests                                           MK2 seats with sliding headrests extended.

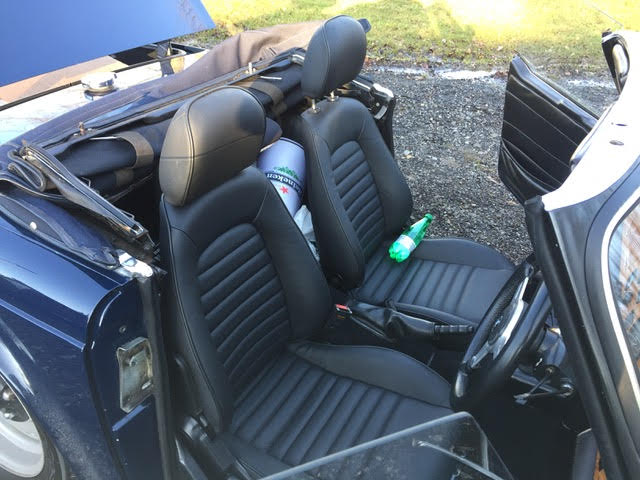

TR6 with MK2 black leather seats fitted                            MK2 seats black leather with back piping



                        Close up of a Mazda seat runner bolted to the TR Trader                     Sliding headrest Mazda Seats as fitted to our latest TR6 restoration           MK2 Mazda seats fitted in TR6
conversion brackets, also shown is the 7/16 AF bolt head                       We re-trimmed the entire car in RR magnolia leather.
which screws into the original TR seat anchor point in the floor pan.





The white hatching on the 1st picture shows where to cut out a vee shape, prior to bending the runner on later MK2 runners - MK1 runners don't need this mod they don't have the web. The runner ends bend easily with a large adjustable spanner (picture 2).  The location peg can be cut off with a hacksaw or grinder (picture 3)
We do provide an instruction sheet with every order.





IMPORTANT: The seat belt anchor on the seat must be deleted, simply remove with a 17mm spanner. only the original Triumph seat belt anchor points must be used.

**We have a good selection of Mazda Seats in stock - for more details click here: MAZDA SEATS
